Once the aluminum flashing and insulation were finished, it was time to cut and install the plywood subfloor.   We walked into Home Depot fully intending to pick up the necessary materials but instead of plywood, we mistakenly bought a cheaper version of plywood called OSB (oriented strand board, or pressboard).  OSB is a common material used for subflooring and wall sheathing and is popular due to its lower price tag.  It's not as strong as plywood and much less water resistant.  Now, the subfloor shouldn't really ever get wet, but if it ever does, a plywood subfloor would react much better than an OSB subfloor.  When in contact with water OSB swells, causing problems.  We didn't realize that we'd used OSB instead of plywood until we'd already cut the 4x8 pieces to size, so we decided to stick with the OSB and make a few changes to compensate for it.  Originally, our plan was to anchor the sill plates on top of the plywood subfloor then build the walls on the sills.  Because the OSB is sensitive to water, we decided to do a bit of extra work to shield the OSB subfloor from unwanted moisture.  On top of the trailer, we cut the OSB sheets 3.5" short of the perimeter of the trailer frame to allow space for the 2x4 sills to be anchored directly to the steel trailer frame.  We also installed strips of  L flashing between the sills and the OSB subfloor to prevent any rogue rainwater from getting to the OSB.  If water somehow got into the walls and down near the sill plates, it would be stopped from entering the subfloor and instead, would be guided out of the bottom of the wall by the  L flashing.  With this flashing installed, we then installed the pressure treated sills and prepared them to be anchored to the trailer.  Anchoring is one of the most important parts of the tiny house building process because it is how the structure and all of its weight is connected to the trailer.  By firmly anchoring the sill plates to the trailer frame, everything built on top of the sills is held strongly to the steel trailer frame.  Instead of welding threaded bolts to the side of the trailer frame, we opted to bolt down the sills by drilling holes through the sills and trailer frame, dropping in 4" long 5/8" bolts, and fastening these bolts with heavy-duty washers and nuts.  We temporarily removed small areas of the insulation in order to reach down into the trailer frame to tighten the nuts.  We placed the bolts no more than 4' away from each other along the perimeter of the trailer and a bolt within 12" of each corner.  We also chose to place our hold-downs at this time in order to maximize the strength of the walls. To do that, we marked on the sills where each stud would go followed by a mark for each hold down.

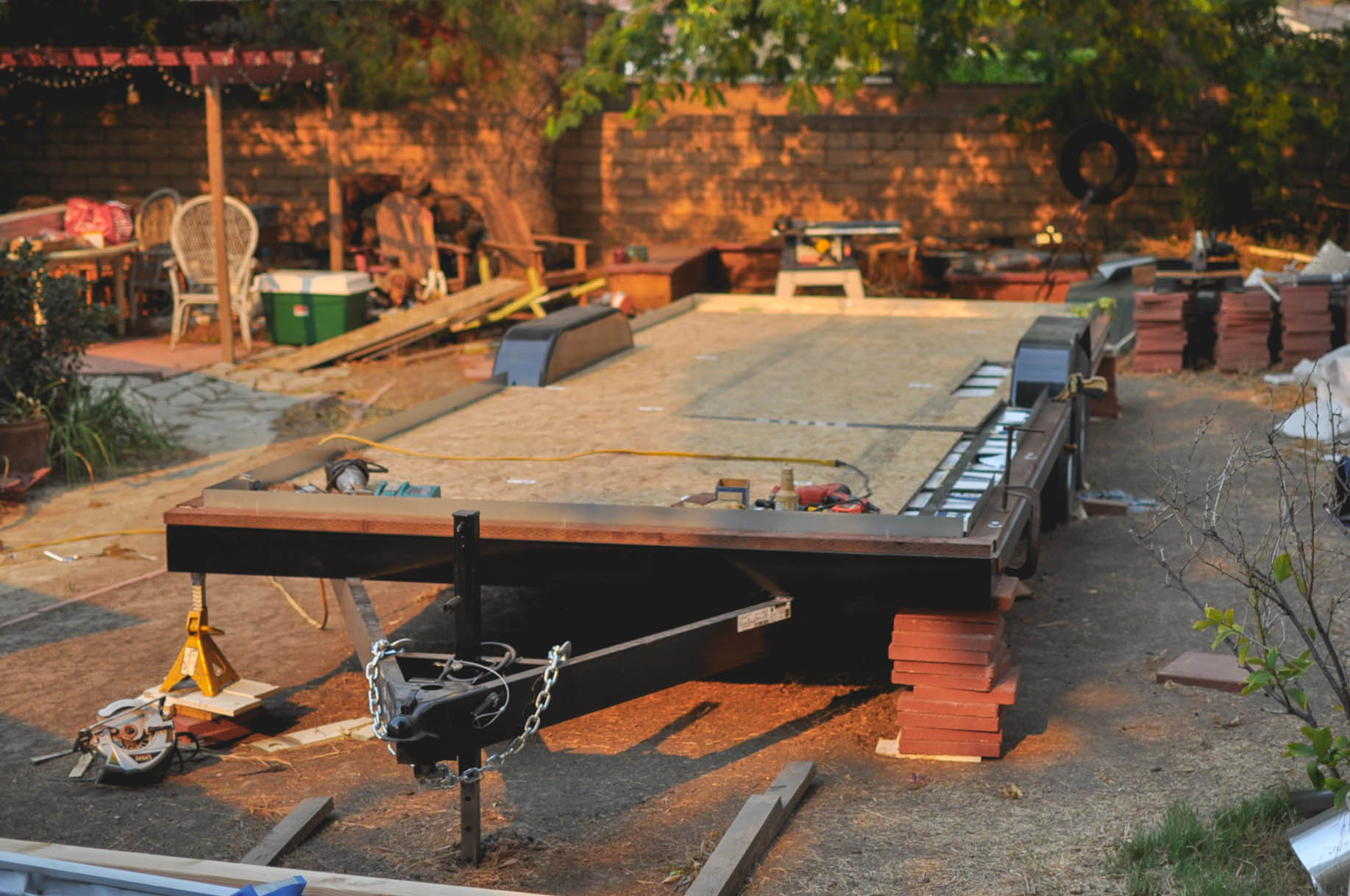

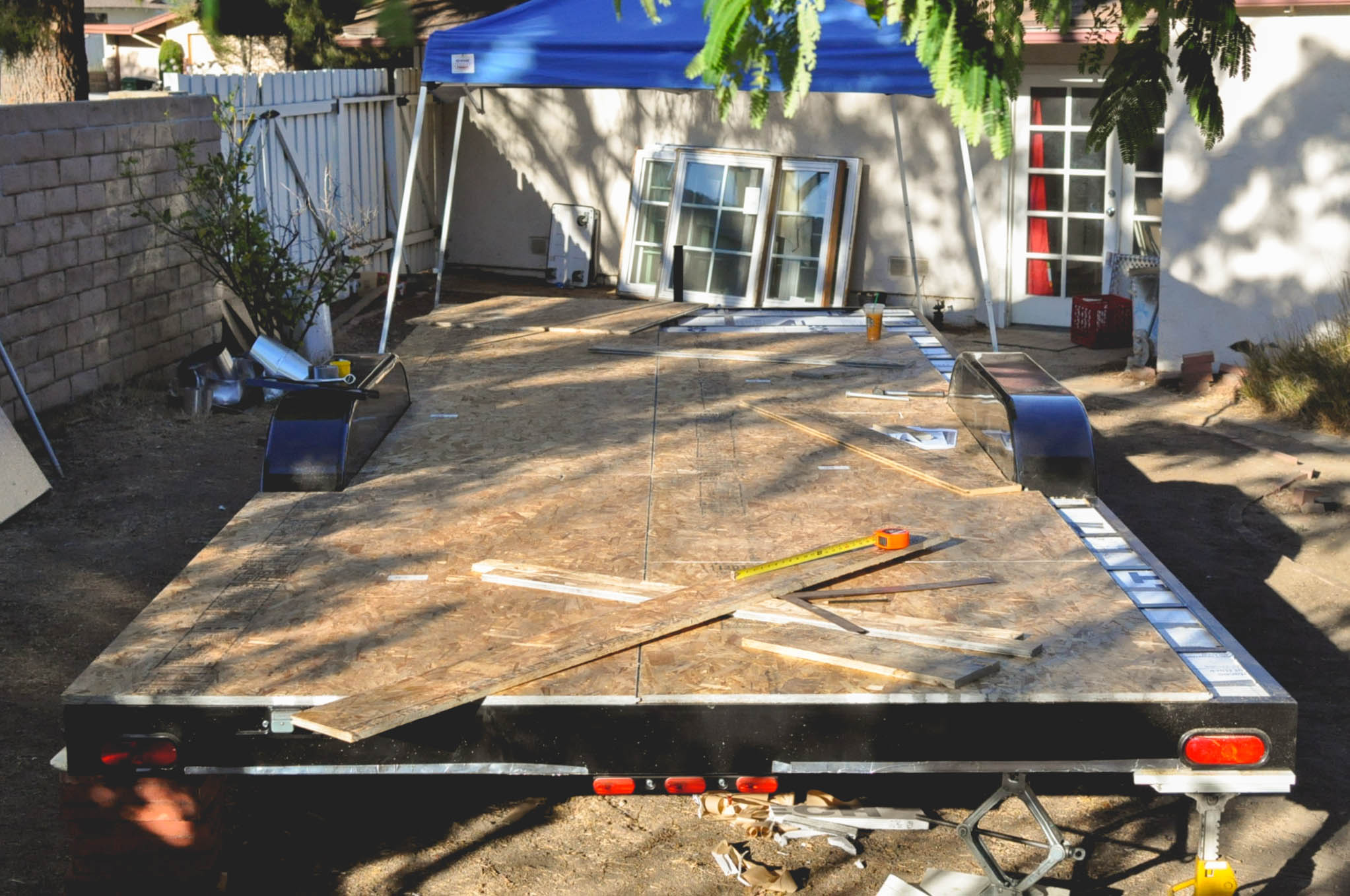

Here's the trailer as it looked while we were placing the subfloor.  This was before we changed the plan to account for the sills around the edges of the subfloor, not above the subfloor.

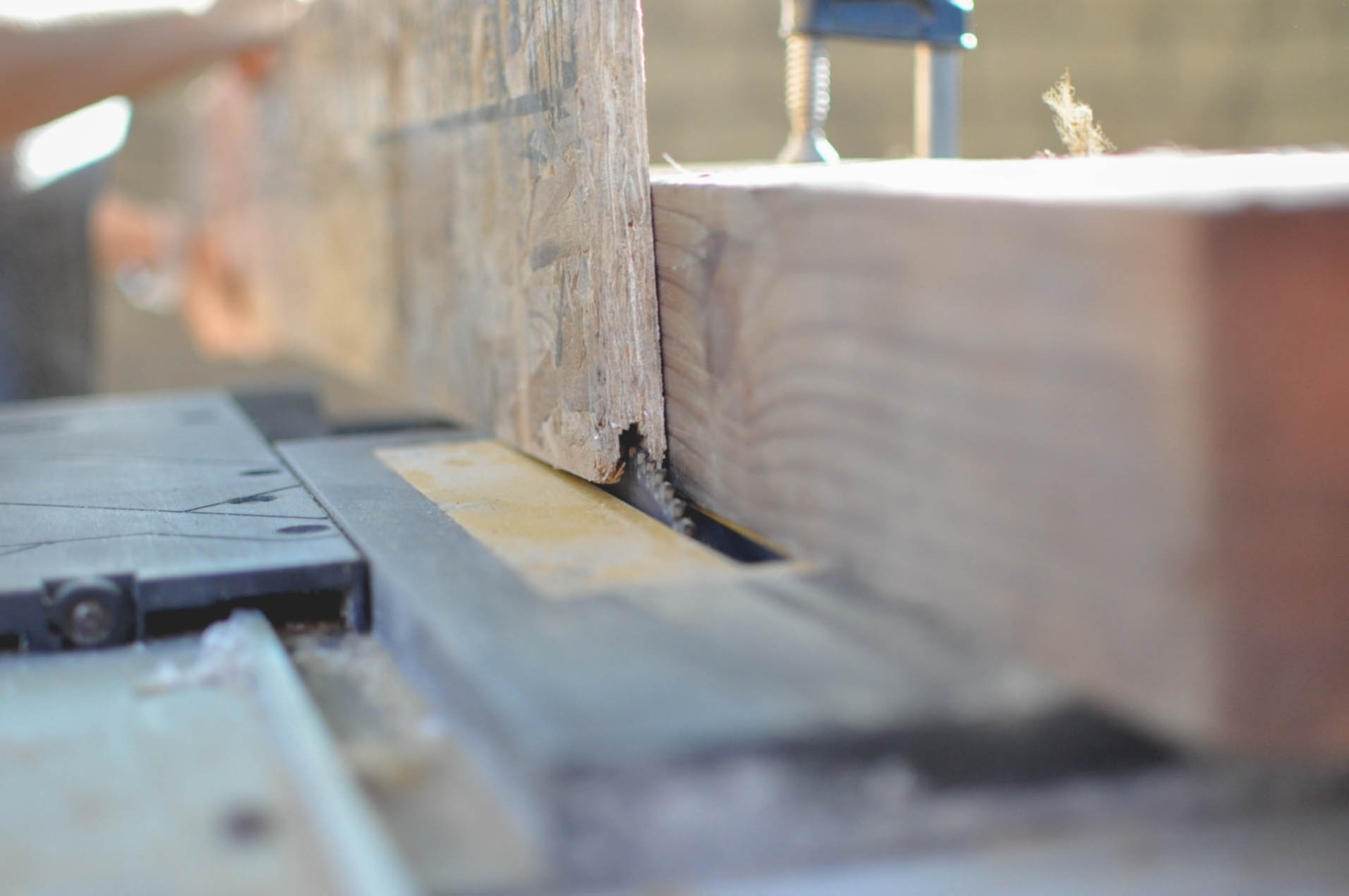

This photo shows a mistake we made in cutting the OSB to fit around the wheels of the trailer.

Picking up the sills, L-flashing, bolts, and tie downs.  We've been making trips to Home Depot about every other day to pick up materials.

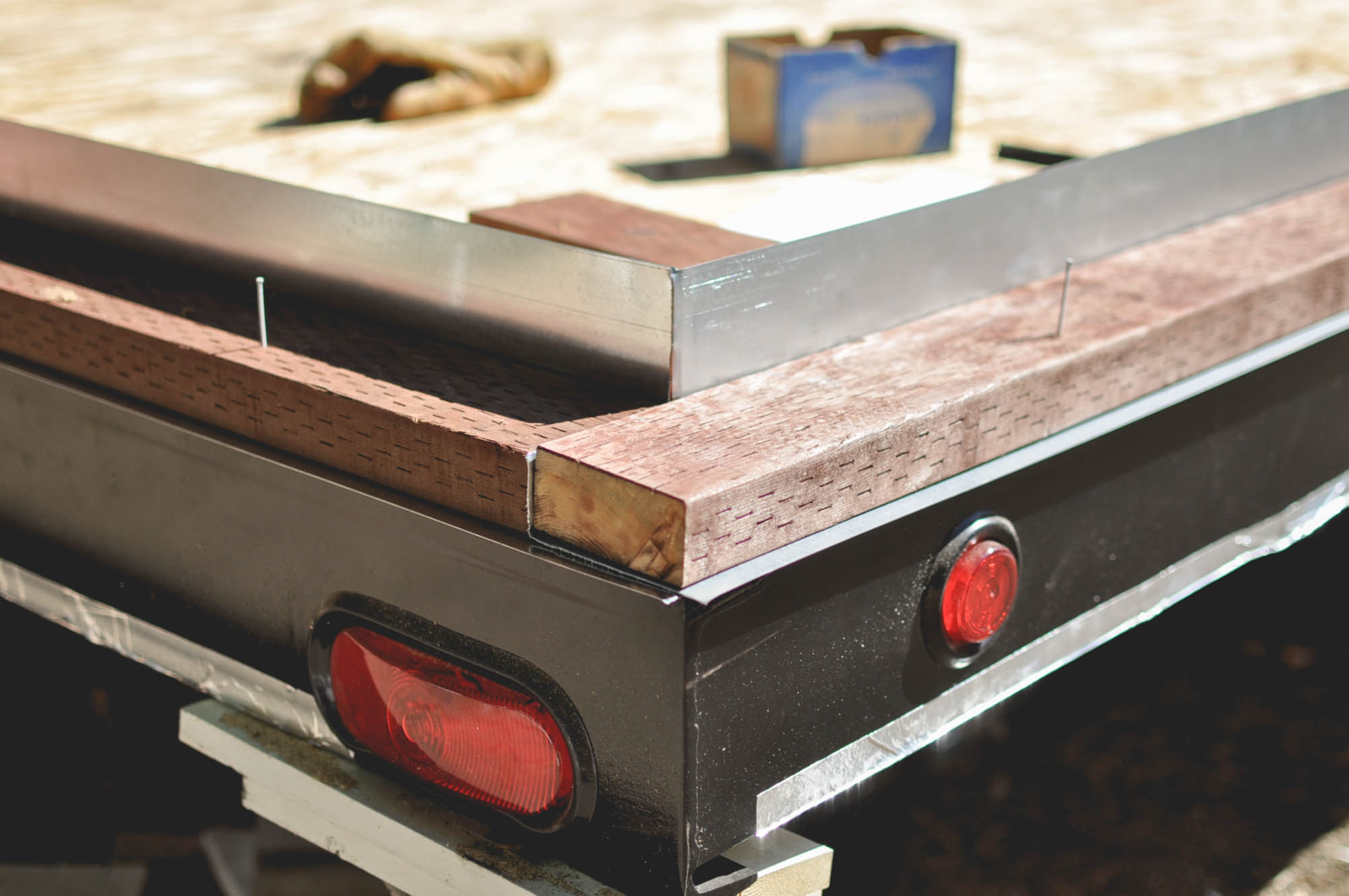

This is a shot of a corner with the L-flashing and sills in place, waiting to be bolted down to the trailer frame.  The white nails mark the locations of the anchor bolts.

 We fashioned our own tongue and grooves for a few pieces instead of buying new sheets.

We fashioned our own tongue and grooves for a few pieces instead of buying new sheets.

We were stoked when the home-made groves worked!

Once the anchor bolting was done for each side, Mike drilled holes for each hold down with 5" long, 5/8" bolts.  We wanted to ensure the integrity of the trailer itself so we chose to bolt the hold downs on the inside edge of the sill plate, avoiding the c-tubing, and attaching them to the trailer by using a 2" by 2" metal plate, sandwiching the c-tubing and another piece of metal to keep it flat and secure. Once all twelve hold downs and sixteen anchoring bolts were tightened, we set the subfloor back in its place and we were ready to screw in the subfloor and build the walls!

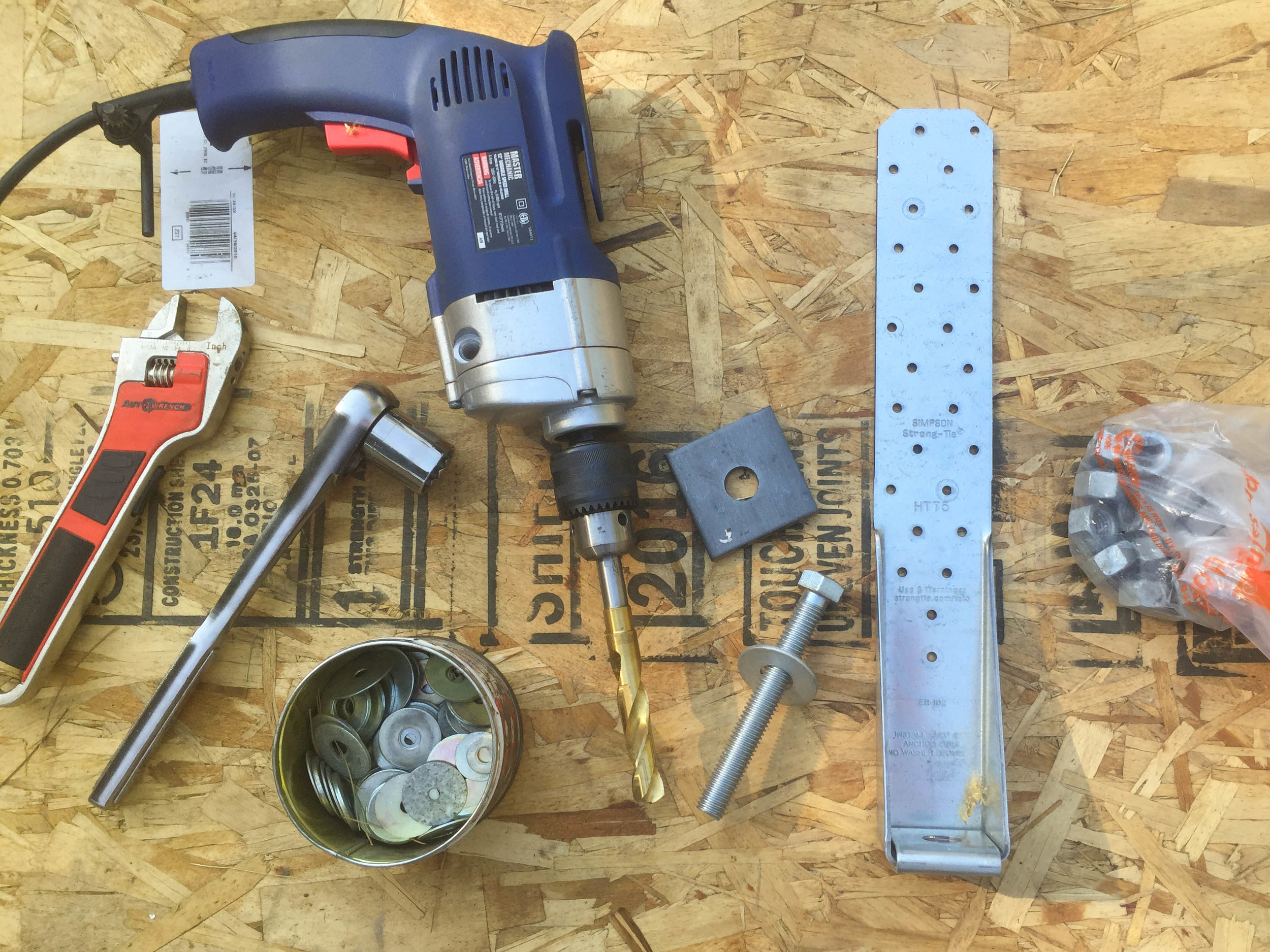

Some of the tools and materials we used to anchor the sills and hold-downs.

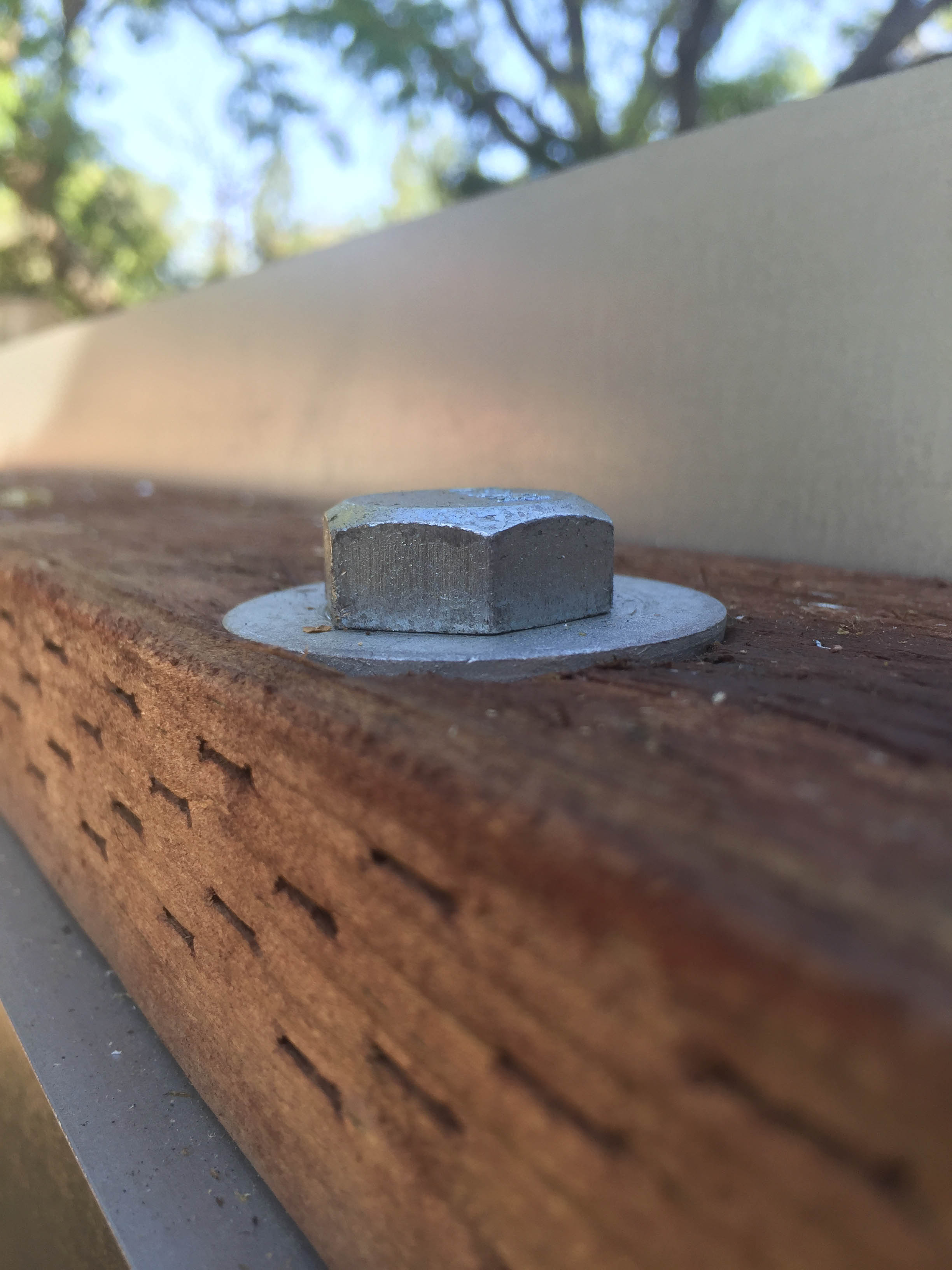

This is one of the finished bolts which holds the sill to the trailer.

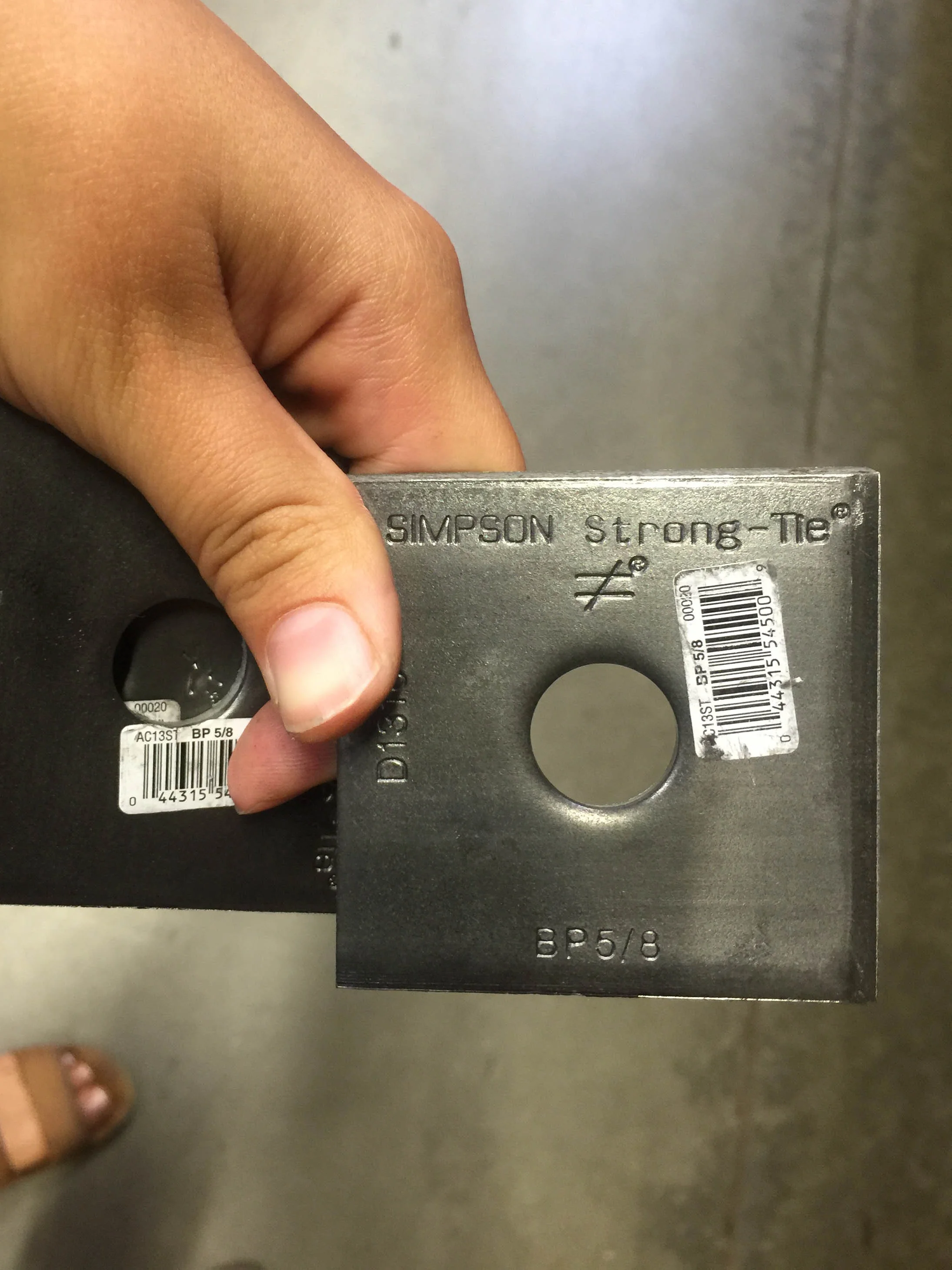

Here's one of the washer-like plates we used to serve as the bottom washer under the hold-downs.
